Products • DMX Interfaces • CVDD4
CVDD4 • 4-OUTPUT
4 Output Constant Voltage Driver
IN STOCK • SHIPS TODAY

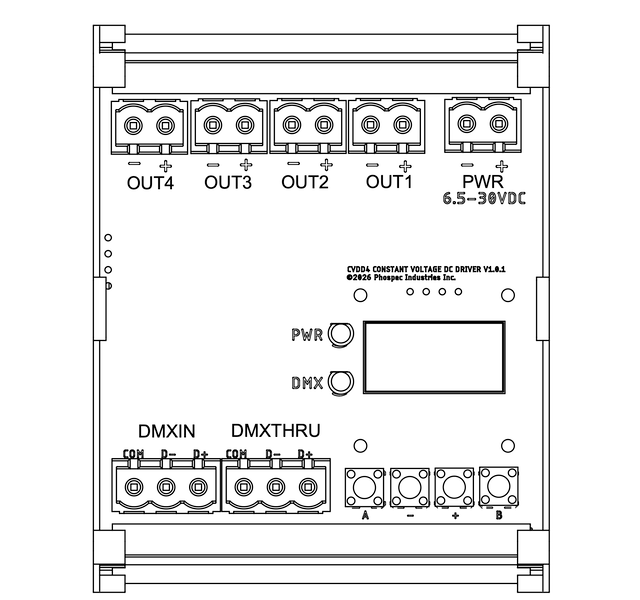

CVDD4
4-Output Compact Constant Voltage DC Driver
$299USD MSRP
Free shipping on orders over $300
The CVDD4 is the most versatile 4-Output Compact Constant Voltage DC Driver in the DMXBlox family. It supports LED Dimming or driving DC loads, outputting rock-solid 1KHz PWM on four independent outputs.
Outputs
4 - 5A Current Sink
Inputs
DMX512
Modes
Simple Dimmer, Non-Dim, RGBW and Tunable White
Frequency
1KHz
Key Features
- 4 - 5A Current Sinking Drive outputs
- Dimmer, Non-dim, RGBW and Tunable White modes
- Linear or logarithmic fades, with microfade smoothing
- RDM (Remote Device Management) compatible
- 6.5-30V DC input
- Din rail mounting
- Status LEDs with signal & power indication
2-year warranty • 30-day money-back guarantee
Technical Specifications
| Parameter | Specification |
|---|---|
| Outputs | 4 × 5A DC Current Sink |
| Network Protocols | DMX512 |
| Power Options | 6.5 - 30 VDC |
| Dimensions | 75 × 75 × 55 mm |
| Weight | 680 g |
| Operating Temperature | -10°C to +60°C |
